Metal Plate Laser Cutting: A Comprehensive Guide to the Basics

A New Era of Precision Manufacturing

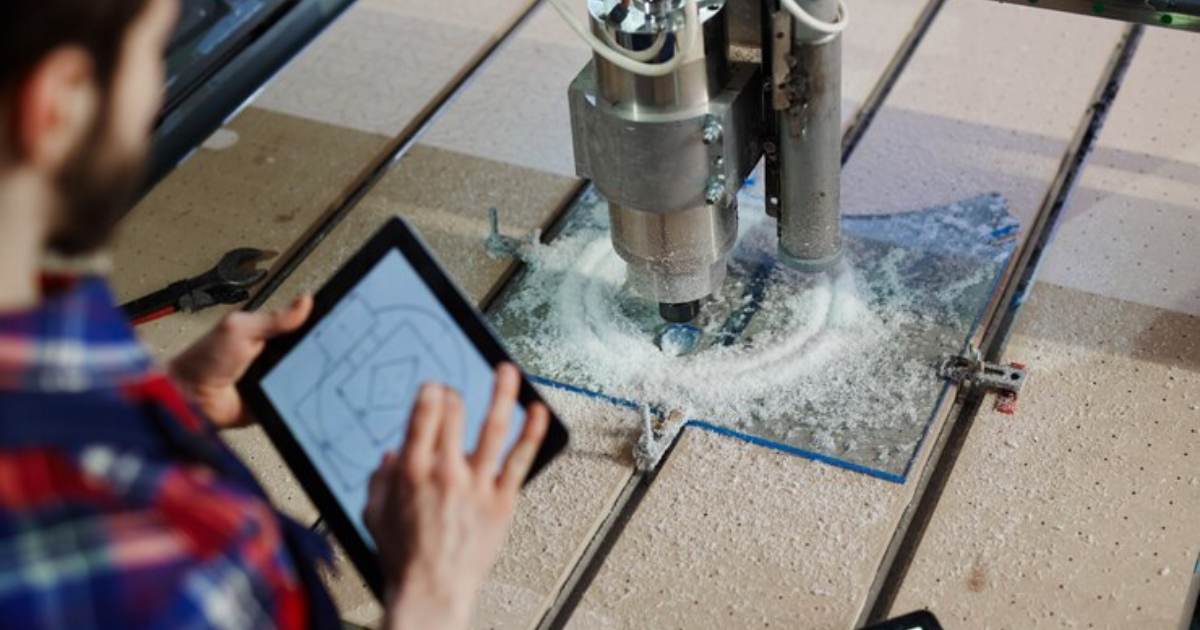

In the landscape of modern industry, the ability to transform raw materials into intricate, functional parts with speed and precision is paramount. At the heart of this capability lies a category of technologies known as subtractive manufacturing, where material is selectively removed from a larger piece to achieve a final shape. From traditional milling and turning to advanced computer-controlled processes, subtractive methods have built our world.

Among these technologies, sheet metal laser cutting has emerged as a cornerstone of industrial fabrication. It represents a significant leap forward, offering unparalleled precision, speed, and design freedom. This process utilizes a highly concentrated beam of light to cut, engrave, or mark sheet metal, translating digital designs into physical components with microscopic accuracy. Its industrial significance cannot be overstated; it is the engine behind parts manufacturing in aerospace, automotive, construction, electronics, and countless other sectors.

This article provides a comprehensive exploration of sheet metal laser cutting, from its fundamental principles and historical development to practical design considerations and a look at the future. Whether you are an engineer, a designer, a business owner, or simply curious about modern manufacturing, this guide will illuminate the essentials of this transformative technology.

What is Sheet Metal Laser Cutting?

Sheet metal fabrication is the process of creating parts and structures from flat sheets of metal. This involves a range of techniques like bending, folding, welding, and, most critically, cutting the initial flat pattern. The relationship between sheet metal fabrication and laser cutting is symbiotic; laser cutting provides the ideal method for creating the precise, complex 2D profiles that are then formed into 3D structures.

The Working Principle: Light as a Cutting Tool

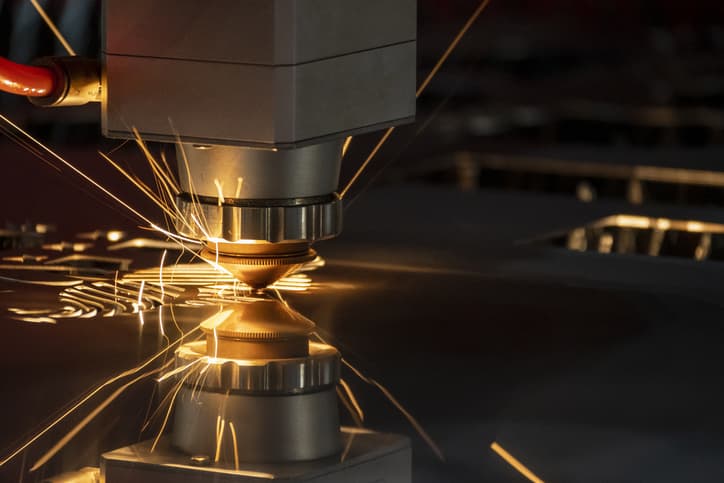

At its core, laser cutting works by directing the output of a high-power laser, most commonly through optics, onto the material to be cut. The process unfolds in a sequence of controlled events:

1. Laser Beam Generation: A laser resonator (the source) generates a powerful, monochromatic, and coherent beam of light.
2. Focusing: A series of mirrors and a focusing lens concentrate this beam onto a tiny, precise spot on the surface of the metal plate. This concentration dramatically increases the energy density.
3. Material Removal: The intense thermal energy at the focal point heats the metal so rapidly that it melts, burns, or vaporizes.
4. Assist Gas Jet: Simultaneously, a coaxial jet of assist gas (such as oxygen, nitrogen, or argon) is directed at the cutting zone. This gas jet has two primary functions: it blows the molten or vaporized material out of the cut path (known as the "kerf"), and in some cases, it participates in a chemical reaction to aid the cutting process.

The CNC Advantage: From Digital to Physical

What elevates laser cutting from a simple tool to a powerhouse of modern manufacturing is its integration with Computer Numerical Control (CNC). A CNC system acts as the brain of the laser cutter. It interprets a digital design file, typically a CAD (Computer-Aided Design) drawing, and translates it into a series of precise instructions for the machine's motion control system. This allows the cutting head to follow complex paths with exceptional accuracy and repeatability, enabling the creation of identical parts in the thousands with tolerances measured in fractions of a millimeter.

The History of Sheet Metal Laser Cutting

The journey of laser cutting is a story of scientific discovery meeting industrial need.

• 1960: The story begins with Theodore Maiman at Hughes Research Laboratories, who developed the first functional laser using a synthetic ruby crystal. Initially dubbed "a solution looking for a problem," its potential was not immediately obvious.
• 1965: The first practical application of this "solution" was demonstrated at the Western Electric Engineering Research Center. A laser was used to drill holes in diamond dies, a task that was notoriously difficult and time-consuming with traditional methods. This proved the laser's ability to work with extremely hard materials.
• 1967: The first gas-assisted laser cutting was pioneered in the UK for cutting 1mm thick steel sheets using an oxygen-jet-assisted CO2 laser. This marked the true beginning of industrial metal cutting.
• 1970s: The first production-ready CNC laser cutting machines entered the market. These early systems were predominantly powered by CO2 lasers and, despite being large and expensive, they revolutionized industries that required complex cuts in sheet metal, such as the aerospace sector.
• 1990s-2000s: CO2 laser technology matured, with higher power and better beam quality becoming standard. During this time, solid-state crystal lasers like Nd:YAG also found a niche, particularly for high-power pulsed applications.
• The Fiber Laser Revolution (Mid-2000s to Present): The most significant evolution in recent history has been the commercialization and rapid adoption of fiber lasers. Their superior energy efficiency, minimal maintenance requirements, and exceptional speed for cutting thin to medium-gauge metals have allowed them to overtake CO2 lasers in many applications, driving down costs and further expanding the accessibility of laser cutting technology.

Types of Lasers Used for Metal Plate Cutting

The "laser" in a laser cutter is not a one-size-fits-all component. The type of laser source, or resonator, determines the machine's capabilities, efficiency, and ideal applications. The three primary types used for metal cutting are Fiber, CO2, and Crystal lasers.

1. Fiber Lasers

• Principle: Fiber lasers are a type of solid-state laser. The process begins with pump diodes that generate light, which is then channeled into a flexible optical fiber. This fiber is doped with a rare-earth element, typically ytterbium. The fiber itself acts as the lasing medium, amplifying the light to create the final, powerful laser beam. The beam is contained and delivered entirely within the fiber, eliminating the need for complex mirror systems.
• Scope: They are the dominant technology for cutting thin to medium-thickness metals (up to ~25mm or 1 inch). They excel at processing reflective metals like aluminum, brass, and copper, which can damage CO2 laser optics.
• Pros:
  • High Efficiency: Unmatched wall-plug efficiency (often >30%), leading to lower electricity consumption and operating costs.
  • Low Maintenance: No moving parts or mirrors in the beam path means no alignment is needed. The pump diodes have extremely long lifespans.
  • High Speed: The shorter wavelength of fiber lasers is absorbed more readily by metals, resulting in significantly faster cutting speeds on thinner materials.
  • Compact Footprint: The lack of a large gas resonator cabinet makes the machines more compact.
• Cons:
  • While capable of cutting thick plate, high-power CO2 lasers often produce a smoother, higher-quality edge finish on very thick materials (>20mm).
  • The initial investment cost can be higher, though prices are continually decreasing.

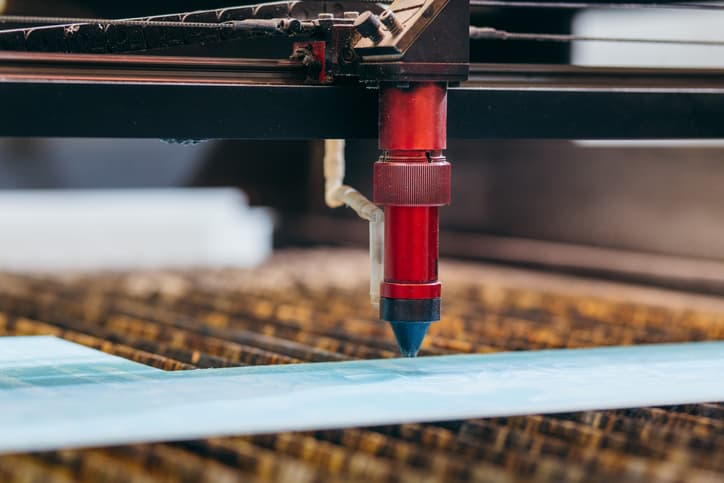

2. CO2 (Carbon Dioxide) Lasers

• Principle: CO2 lasers generate their beam by passing an electrical current through a gas-filled tube. The gas mixture typically consists of carbon dioxide, helium, and nitrogen. The excited CO2 molecules produce infrared light, which is then bounced between mirrors at either end of the tube to amplify it into a coherent laser beam.
• Scope: CO2 lasers are true all-rounders. They are excellent for cutting thick-plate steel (>25mm) and produce a superior edge quality with a smooth, satin-like finish. They are also the go-to technology for cutting non-metallic materials like wood, acrylic, leather, and plastics.
• Pros:
  • Exceptional Edge Quality: Particularly on thicker materials, they produce a very smooth, burr-free cut.
  • Versatility: Capable of processing a wide range of both metallic and non-metallic materials.
• Cons:
  • Low Efficiency: Wall-plug efficiency is typically around 10%, leading to higher energy costs.
  • High Operating Costs: Requires regular gas replenishment and has higher power consumption.
  • Maintenance Intensive: The beam path relies on mirrors that must be kept perfectly clean and aligned, requiring regular maintenance by skilled technicians.
  • Larger Footprint: The gas resonator and associated equipment require more floor space.

3. Crystal Lasers (Nd:YAG & Nd:YVO)

• Principle: These are also solid-state lasers, but instead of a doped fiber, they use a solid crystal (Neodymium-doped Yttrium Aluminum Garnet or Neodymium-doped Yttrium Orthovanadate) as the lasing medium. This crystal is stimulated ("pumped") by high-intensity lamps or laser diodes to produce the beam.
• Scope: Historically used for very thick or reflective material cutting and welding. They can deliver very high peak power in a pulsed mode.
• Pros:
  • High pulse energy makes them suitable for specific drilling and welding applications.
• Cons:
  • Extremely Inefficient: They have the lowest wall-plug efficiency (often 2-3%).
  • High Maintenance: The pump lamps have a very short lifespan and require frequent, costly replacement.
  • For most sheet metal cutting applications, they have been almost entirely superseded by more efficient and reliable fiber laser technology.

The Three Sheet Metal Laser Cutting Processes

Beyond the type of laser, the cutting process itself can be categorized by how the material is removed. This is primarily determined by the type of assist gas used.

1. Laser Beam Fusion Cutting (Melt and Blow)

• Process: In fusion cutting, the laser beam's energy is used solely to melt the metal at the focal point. A high-pressure jet of an inert gas, typically nitrogen or argon, is then used to forcefully eject the molten material from the kerf.
• Characteristics: Because the gas is inert, it does not react chemically with the cutting edge. This results in a clean, oxide-free, and often shiny cut edge that is immediately ready for welding or painting without any secondary processing. It is the preferred method for achieving the highest quality finish.
• Applicable Scenarios: Essential for cutting stainless steel, aluminum, and their alloys, where preventing oxidation and maintaining material purity is critical.

2. Laser Flame Cutting (Oxygen Cutting)

• Process: This process uses oxygen as the assist gas. The laser beam first heats the material (typically mild steel) to its ignition temperature (around 1000°C). The jet of pure oxygen then initiates an exothermic (heat-producing) chemical reaction with the iron, effectively burning it away. The laser's primary role becomes initiating and guiding this controlled burn.
• Characteristics: The additional energy from the exothermic reaction allows for significantly faster cutting speeds, especially in thick carbon steel. The resulting edge will have a thin, dark oxide layer, which may need to be removed before subsequent welding or coating.
• Applicable Scenarios: The workhorse process for cutting mild steel and low-alloy carbon steel, where speed and cost-efficiency are more important than a perfectly oxide-free edge.

3. Laser Beam Sublimation Cutting (Vaporization Cutting)

• Process: Sublimation cutting uses a very high-energy-density laser beam to heat the material so quickly that it vaporizes directly from a solid to a gas, with little to no liquid (molten) phase. The resulting vapor is then blown away by an assist gas.
• Characteristics: This process produces an exceptionally high-quality, burr-free edge with a minimal Heat Affected Zone (HAZ). However, it is much slower and requires significantly more energy than fusion or flame cutting because vaporizing material requires more energy than simply melting it.
• Applicable Scenarios: Less common for general sheet metal fabrication. It is used for specialized applications requiring extreme precision and minimal thermal stress on thin materials, such as cutting plastics, certain composites, wood, or in the manufacturing of medical stents and electronic components.

Advantages of Sheet Metal Laser Cutting

The widespread adoption of laser cutting is due to a compelling set of advantages over traditional methods.

• High Precision and Intricacy: Lasers can achieve tolerances as tight as ±0.1mm (0.004 inches), allowing for the creation of highly complex geometries and fine features that are impossible with other methods.
• High Material Utilization: The laser beam creates a very narrow kerf (cut width). This allows parts to be nested very close together on a single sheet of metal, minimizing scrap material and reducing costs.
• Versatility: A single laser cutting machine can process a wide variety of metals (steel, stainless steel, aluminum, brass, copper) and a range of thicknesses. It can also perform multiple operations, such as cutting, marking, and etching, in a single setup.
• Low Power Consumption: This is particularly true for modern fiber lasers, which are remarkably energy-efficient, leading to lower operating costs and a smaller environmental footprint compared to older laser technologies or other machinery.
• Minimal Material Damage: Laser cutting is a non-contact process. The heat is highly localized, resulting in a very small Heat Affected Zone (HAZ). This minimizes thermal distortion and warping, which is especially important for thin or delicate parts.

Disadvantages of Sheet Metal Laser Cutting

Despite its many benefits, laser cutting is not without its limitations.

• Requires Skilled Operators: Operating and maintaining an industrial laser cutter requires specialized training. A skilled technician is needed to set parameters, perform maintenance, and troubleshoot issues to ensure optimal performance and safety.
• Metal Thickness Limitations: While high-power lasers can cut very thick plate (over 50mm or 2 inches), there is a practical limit. For extremely thick metals, other processes like plasma cutting or waterjet cutting may be more efficient or cost-effective.
• Harmful Fumes and Gases: The cutting process vaporizes metal and generates fumes and particulate matter that are hazardous to inhale. A robust ventilation and filtration system is a mandatory safety requirement.
• High Initial Investment: The capital cost of purchasing an industrial-grade laser cutting system is significant, representing a major investment for any business.

Design Tips for Laser Cut Parts

To get the most out of laser cutting technology and ensure your parts are manufacturable and cost-effective, follow these design best practices.

• Detail Size vs. Material Thickness: A crucial rule of thumb is that the minimum size of any cut-out feature (like a hole or slot) should be no smaller than the thickness of the material. For example, in a 3mm thick steel plate, the smallest hole you should design is 3mm in diameter. Trying to cut smaller details can lead to blowouts or an incomplete cut.
• Kerf Compensation: The laser beam removes a small amount of material, creating a cut width known as the kerf. While narrow, this must be accounted for in designs requiring tight tolerances, such as interlocking parts or press-fit assemblies. Your manufacturing partner can advise on their machine's specific kerf value.
• Material Selection: Choose materials well-suited for laser cutting. Standard grades of mild steel, stainless steel, and aluminum cut cleanly and predictably. Be aware that highly reflective materials like polished aluminum or copper can be challenging and may require a more powerful fiber laser.
• Spacing and Nesting: Leave adequate space between parts on a sheet. A good general rule is to maintain a distance at least equal to the material's thickness between individual component outlines. This prevents heat distortion and ensures the sheet remains stable during cutting.
• Text and Engraving: For text that is cut all the way through, use a "stencil" font. These fonts have small bridges that keep the inner parts of letters (like 'O', 'A', 'B') from falling out. For engraved text, use simple, bold sans-serif fonts for the best clarity.
• Tips to Reduce Manufacturing Costs:
  • Simplify: Avoid unnecessary complexity. Every cut adds time and cost.
  • Add Corner Radii: Sharp internal corners are points of stress. Adding a small radius (fillet) makes the part stronger and allows the laser to cut more smoothly and quickly.
  • Use Standard Gauges: Design with standard material thicknesses to avoid special-order material costs.
  • Consolidate Parts: If possible, design a single, more complex part that can be bent into shape rather than multiple simple parts that need to be welded together.

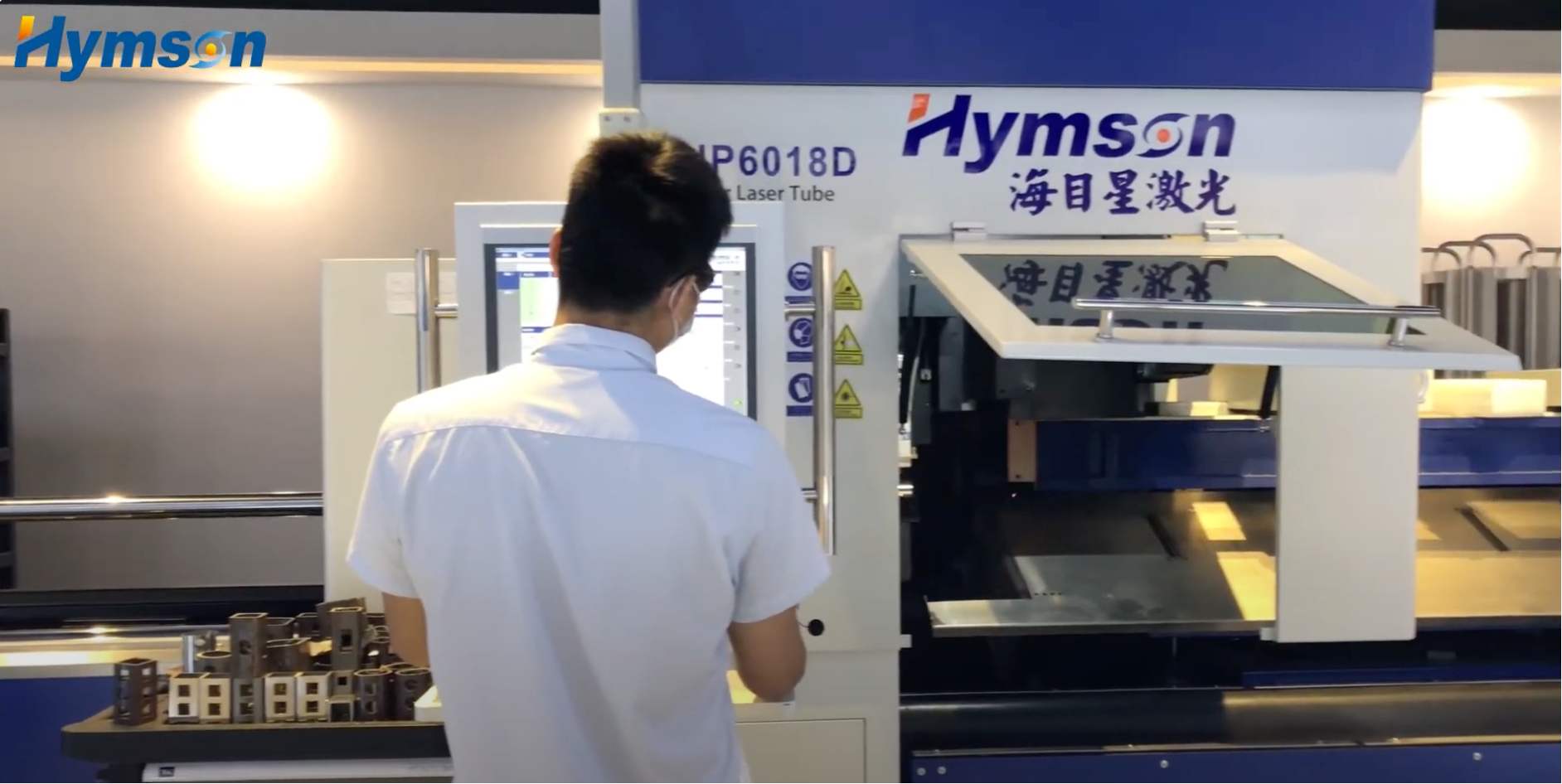

Recommended Online Laser Cutting Service: Hymson Laser

When choosing a service provider or a machine manufacturer, partnering with an established leader is crucial. Hymson Laser, founded in 2008, has been making significant contributions to the fields of laser and automation. Today, it stands as a world-leading laser and automation equipment integrated solution provider and a national high-tech enterprise.

Aiming at sheet metal applications in different industries, Hymson provides users with professional and high-quality product mixes and services. Their offerings are comprehensive, including comprehensive laser automation solutions such as laser plate cutters, laser tube cutters, laser welding machines, and laser automation software. These solutions are widely used in demanding industries like engineering machinery, construction machinery, agricultural machinery, petroleum machinery, electrical manufacturing, automobile making, and aerospace. As premier metal laser cutting manufacturers, their expertise covers both the equipment and its application.

Why Choose Hymson Laser?

Hymson's technology is engineered for efficiency, reliability, and intelligence, providing tangible benefits to its users.

● Intelligent Dust Exhaust System: This advanced system focuses suction only on the active cutting area. This not only strengthens the ventilation effect for a safer work environment but also saves energy by not ventilating the entire cutting bed.

● Intelligent Gas Control System: Gas is a significant operational cost. Hymson's intelligent system optimizes gas flow based on the material and cutting speed, potentially saving gas up to 50% compared to conventional systems.

● Auto-focusing: The cutting head is accurate, fast, and smart. It automatically adjusts the focal point for different material types and thicknesses, eliminating manual setup time and ensuring a perfect cut every time.

● Full-automatic Lubrication System: This system automatically lubricates the gear and rack mechanisms at programmed intervals. It is virtually maintenance-free, reducing downtime and extending the life of critical motion components.

● Global Support: Investment in Hymson equipment is backed by installation, training, and ongoing support from global, factory-trained engineers, ensuring you get the maximum return on your investment.

Conclusion

Sheet metal laser cutting has evolved from a niche technology into an indispensable pillar of modern manufacturing. From the early days of CO2 lasers to the current, highly efficient fiber laser revolution, the technology has continuously pushed the boundaries of precision, speed, and efficiency. It has granted designers and engineers unprecedented freedom to turn complex digital concepts into precise physical components.

Technology Summary: Fiber lasers now dominate in cutting thin to medium-gauge metals due to their high efficiency and low maintenance, while CO2 lasers retain a unique advantage for very thick plate and non-metallic materials. Understanding the different processes—fusion, flame, and sublimation cutting—is vital for selecting the right approach for a given material and quality requirement.

Service Recommendation: For businesses looking to outsource or invest in new equipment, industry leaders like Hymson Laser offer cutting-edge technological solutions and global support, ensuring that users can fully leverage the potential of laser technology.

Advice for the Reader: Whether you are considering your first machine purchase or looking to prototype with an outsourced service, understanding the fundamental principles, advantages, and design constraints of laser cutting is the key to success. By following good design practices and choosing the right partners, you can turn this powerful technology into your competitive advantage.

Q&A

1. How thick can a laser cut metal?

This depends on the laser's power and type. A high-power (e.g., 12kW+) fiber or CO2 laser can cut through steel over 50mm (2 inches) thick. However, for most commercial applications, laser cutting is most cost-effective on metals up to 30mm thick.

2. Is laser cutting expensive?

The initial equipment investment is high. For an outsourced service, however, the per-part cost depends on several factors: material type, thickness, cutting complexity, and order volume. For high-volume production, laser cutting becomes very cost-competitive due to its high speed and material utilization.

3. Should I choose a fiber laser or a CO2 laser?

This depends on your primary application:

• Fiber Laser: If you primarily cut metals under 30mm—especially steel, stainless steel, aluminum, brass, and copper—a fiber laser is the best choice for its speed, efficiency, and low maintenance.
• CO2 Laser: If you need to cut very thick steel plate (>30mm) with the best possible edge quality, or if you need to cut a variety of non-metallic materials (like wood and acrylic), a CO2 laser is the more versatile option.

4. What is the Heat Affected Zone (HAZ) and is it important?

The HAZ is the small area along the cut edge where the material's microstructure and mechanical properties have been altered by the heat. Laser cutting produces a very small HAZ, but for certain heat-sensitive alloys or applications requiring subsequent precision work, this zone can affect hardness or corrosion resistance. In such cases, a no-heat process like waterjet cutting might be a better choice.
