HF·C SERIES FIBER LASER CUTTING MACHINE

HF·C Series is the standard laser cutting machine, which is designed with a mission for handling massive metal cutting and long-term operating.

HF·C Series 3kw Fiber Laser Cutting Machine deploy many intelligent parts in both hardware and software, which can achieve better performance with less cost – better ROI.

New Standard of Intelligent And Automatic Running
Professional Production Management
Smart Manufacture Monitoring

3kw fiber laser cutting machine

HF·C Series 3kw fiber laser cutting machine

Advantage

● High cutting efficiency, high cost performance and low running cost
● High cutting performance for copper/brass, aluminum, stainless steel and carbon steel




Control System Of 3kw Fiber Laser Cutting Machine

Hymson laser 2.0 professional laser cutting control system, based on the new generation of Beckhoff numerical control system, which is highly intelligent. This system can be customized according to the actual requirements of customers, so as to enrich the application of process database. Meanwhile it can be equipped with a large screen display, which makes this system more easy to operate.


●  EtherCAT communication technology
As Hymostar's super brain - EtherCAT control platform, all modules are based on EtherCAT  technology control and data calculation, All the operation is safe, reliable, self-diagnosis, open.


●  Friendly human-machine interface
Fiber laser processing machines - Full touch screen operation, easy to operate, graphics operation function is clear, which helps to improve production efficiency.


●  Remote diagnosis
The system is equipped with remote diagnosis module, customers can contact Hymostar engineers about the equipment problems for remote assistance to solve.


●  Real-time monitoring of equipment running status
The system integrates monitoring function, which can monitor the running state of the equipment in the maintenance interface, and monitor the alarm, moving shaft, laser, cutting head, workbench, gas path and I/O.



Features of Optical fiber cutting machine

1.  Cutting Technology of fiber laser cutting machine/fiber laser cnc machine:

 ▲ Leapfrog Cutting、Automatic Obstacle Avoidance、Lightning Cutting
▲ Rapid Perforation、Breakpoint Resume、Arbitrary Point Cut-in
▲ Gradual Speed Regulation in Tool Start、Aluminum Alloy Burr-free Cutting (Optional)
▲  Fly-cutting High Speed Cutting

2. Sheet Welding Machine Base with Mortise and Tenon Structure

● Super rigid machine base proven by coin test.
● Utilize state of the art welding technology to form the machine tool base.
● Heat treatment to strengthen the intensity and stiffness of base.



fiber laser processing machines

Standard industrial machine tool processing procedure

laser sheet metal cutting machine process

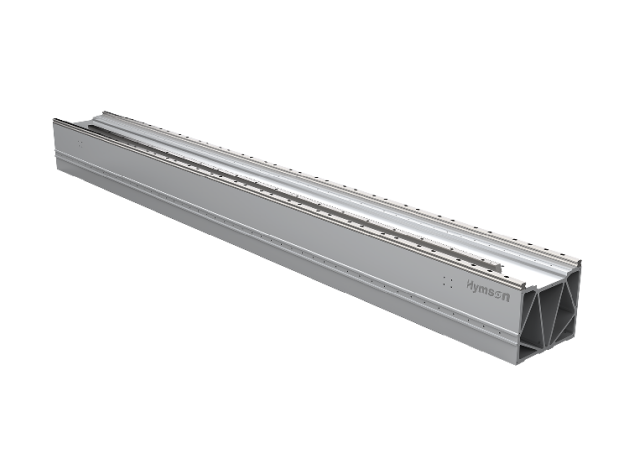

3.Aircraft Aluminum Extrusion for Gantry Beam

3kw fiber laser cutting machine

4.Master 8000 Control System


laser sheet metal cutting machine application


Samples:

Applicable Materials: Specially used for cutting 0.5~30MM stainless steel, 0.5~30MM carbon steel, 0.5~25MM aluminum, 0.5~16MM copper, as well as galvanized steel, electrolytic steel and silicon steel etc.

sheet metal laser cutting machines application
sheet metal laser cutting machine china application
laser sheet metal cutting machines applications
laser sheet metal cutting machine application
Control
Handheld Control The remote wireless remote controller allows the operator to perform the most operations from any convenient location: starting and stopping the program, lighting out, following, reversing the contour, increasing/decreasing the focal length, changing the feed rate, and outputting machine parts.
Gas Management
Compressor Screws, air-cooled, with sound-insulated housing, receiver, desiccant, and ancillary equipment for air cutting up to 16 atmospheres.
Vertical low-temperature gasifier Used as a replacement for standard cylinders when used for cutting gas consumption increases. (eg: cutting stainless steel)
Safty
Operator safety glasses Direct, reflected and scattered laser beams may damage the operator's vision and may even lead to blindness. In order to protect the eyes from laser radiation, special protective glasses should be used.
Smoke Removal
Exhaust fan Used to remove the combustion products produced during the cutting process.
Filter - Ventilation Filters - Ventilators are designed to remove suspended, fine and moderately dispersed dust and smoke from air during welding, metal thermal cutting, etc.
Spare Parts
Supplies accessories Protective glasses, nozzle.


5. Why choose Hymson fiber laser processing machines


● Intelligent dust exhaust system: Work on the cutting area only, strengthen the ventilation effect.
● Intelligent gas control system: save gas up to 50%
● Auto-focusing: accurate, fast and smart
● Full-automatic lubrication system: Auto lubricate the gear and rack, maintenance free.
● Installation/training & support by global factory trained engineers.



fiber laser processing machines



6. Simple and Practical Cutting Software

We provide Master 6000 fiber laser cutting machine software with complete functions. With rich functions, the software highly simplifies and optimizes the cutting process to significantly improve the operator’s work efficiency and production efficiency.

fiber laser cutting machine software



7. Automatic Switching between Marking and Cutting Modes

The marking and cutting modes are separately set by the operator before the commencement of cutting. The operator may reconfigure the machine and input new settings without stopping the material handling process. The switching between modes is automatic, which improves the productivity of compound cutting.The operator conducts setup before starting the processing without stopping the material handling.

fiber laser cutting machine software


User’s Machine Installation Site Condition Preparation

S/N Content
1 Power Supply Capacity: ≥60KVA
2 Power Supply Requirements: (1) Three-phase voltage stability±5%; (2) Unbalancedness of three-phase power supply < 2.5% (Note: Abrupt changes in supply voltage and sudden power failure are not allowed, otherwise, the laser may be damaged easily. Good grounding is required (ground resistance < 3 Ohm).
3 Compressed Air Supply Requirements:
(1) Air supply capacity: ≥ 0.8m3/min   (2) Air supply pressure: ≥ 7bar
(3) Dewpoint ≤ 5                 (4) Oil content ≤ 0.01ppm  Solid particle ≤ 0.01μm
4 Auxiliary gas for cutting: Oxygen (O2)/ Nitrogen (N2): Purity ≥ 99.99%
5 Sheet (Tube) Cutting: Black skin, smooth, level, rustless, evenly rolled, reaching the ISO standard.
6 Installation Site Requirements: 1. The foundation for equipment installation does not settle and should be constructed according to the foundation drawing provided by Party B; 2. Temperature Requirement: [5-30]℃; 3. Humidity Requirement: < 70%; 4. After the equipment is installed and commissioned, separate the laser and install an air conditioner.
7 The equipment operator should have been graduated from a secondary specialized school or above and have the experience in operation of computers and general numerically-controlled lathes. The equipment should be equipped with a programming computer.




Installation and Commissioning

●  All the equipment provided under the contract should be installed and commissioned by Hymson. After the contract is signed, we will determine the specific installation location of the equipment in the shortest time and provide the equipment foundation drawing within 5 working days after the contract goes into effect. Prior to the installation and commissioning, you should prepare the equipment foundation strictly according to the requirements specified in the equipment foundation drawing provided by Hymson. After the installation site is ensured, the engineers will install and commission the equipment with the tools they carry and, within 10 days, complete the installation, commissioning, technical index tests, training, acceptance and delivery for use;

● The expenses related to the installation and commissioning and the staff assigned should be borne by Hymson.


Transportation and Logistics

● The place of delivery should be your installation site.
● Standard packaging suitable for long-distance transportation by truck, being dampproof, rust-proof and shockproof; suitable for integral hoisting and indicating the centre of gravity for lifting and the hoisting position;
● Mode of Transport: Motor transport. We should bear the freight and insurance.
● Each packaging box should be accompanied by a detailed packing list and a quality certification as well as the instructions on the equipment and other documents and materials. The packing list should be outside the packaging box and the quality certification should be inside the packaging box.



Pre-sale Service

1. Welcome to send sample material to us for testing laser marking engraving for you.
2. We offer pictures, videos and other relevant documents for you to know more about the machine.
3. We are online and would respond fast to answer all your questions.
4. If you have chance visiting China, you are warmly welcome to visit our factory.



After-sale Service

1. Any parts have a quality problem during the warranty period, We will send you a new replacement for free. And Customer affords the replacement shipping cost.

2. The training video, detailed manual, and catalog sent with the machine. The customer could study the operation of the machine by watching the clear training video.

3. If there is a technical problem or new inquiry, Hymson has a fast response to service support by online or email even if need by the phone call.

4. Professional technical support and after sales following up. A free software update.



FAQ

1) What are the primary products of your company?
Our primary fiber laser processing machines include sheet metal laser cutting machine, tube laser cutting machine, precision laser cutting machine, laser welding machine.

2) Where is your fiber laser equipment applied to?
Our fiber laser cnc machine is suitable for all kind of laser welding machine for stainless steel, stainless steel, carbon steel, aluminium, copper, galvanized steel, electrolytic steel and silicon steel etc.

3) What are the advantages of your laser equipment?
By using Hymson laser, you can monitor end-to-end process and take complete control of all the machining process. The whole machining process will be done smoothly, which will greatly improve production efficiency. In addition, the precision and consistency of the products in mass production is guaranteed.

4) How to do control the quality when you produce laser equipment?
We introduce international advanced production technology, and strictly implement a series of measures of quality and cost control to ensure the quality of laser cutting machine. In addition, all raw materials are strictly inspected in accordance with international standards before they are put into production.

5) Which countries are your laser machinery sold to?
Our 3kw fiber laser cutting machine sell all over the world, such as United States, Spain,Netherlands,Poland,France,Turkey, Switzerland,Iran,Egypt, India, South Africa, Malaysia, Canada,Mexico,Colombia,Brazil,Chile,Korea, Japan and many other countries.





fiber laser processing machines


Core Configuration
Unit Name Model / Specification Remarks
I. Control Programming Control System  Master 6000 China
II. Mechanical Drive Honeycomb Heavy Duty Lathe HF4020C / HF6020C / HF6025C / 8025C China
  Patented Honeycomb Aluminum Beam HF4020C / HF6020C / HF6025C / 8025C China
  Servo Motor and Drive  INOVANCE China
  Precision Reducer DESBOER  Japan
  Precision Toothed Rack JT/YYC Taiwan
  Precision Guide Rail T-WIN / ROUST   Taiwan /Germany
  Pallet Changer shuttle table China
III. Pneumatic Control Intelligent  Pneumatic System SMC/ PARKER/ AIRTAC, etc.  Japan / USA / Taiwan
  Proportional Valve  SMC/ AVENTICS/LANY Japan / Germany
IV. Optical System Fiber Laser 8000W   China / USA
  Auto Zoom Cutting Head HYMSON China
V. Electrical System Standard Electrical Element SCHNEIDER France
VI. Dedusting System Intelligent Zoned Exhausting System HYMSON China
  Dedusting Fan HYMSON China
VII. Temperature Control System Double Temperature and Double Control Cooling System HYMSON China
  Constant Temperature Air Conditioner with Independent Electric Cabinet HYMSON China

Major Performance Indexes
Equipment Model HF4020C HF6020C HF6025C HF8025C
Effective Cutting Range 4000mmX2000mm 6000mmX2000mm 6000mmX2500mm 8000mmX2500mm
Effective Z-axis Stroke 300mm 300mm 300mm 300mm
X/Y-axis Positioning Accuracy ±0.03mm/m ±0.03mm/m ±0.03mm/m ±0.03mm/m
X/Y-axis Repositioning Accuracy ±0.02mm ±0.02mm ±0.02mm ±0.02mm
Maximum Speed of X/Y-axis Linkage Positioning 140m/min 140m/min 140m/min 140m/min
Maximum X/Y-axis Acceleration 1.0 g 1.0 g 0.8 g 0.8 g
Maximum Z-axis Positioning Speed 30m/min 30m/min 30m/min 30m/min
Maximum Z-axis Acceleration 1.2g 1.2g 1.2g 1.2g
Main Power Protection Grade IP54 IP54 IP54 IP54
Total Weight of Equipment About 10 t About 15t About 16.5t About 22t
Maximum Load of Workbench 1.5 t 2.5t 3.0t 4.0t
Floor Space of Whole Machine 10500mmX5900mm 15000mmX6400mm 15000mmX7000mm 20000mmX7000mm
