Product Introduction
HF-TU Series Uncoiling Feeding Laser Cutting Machine
- HF-TU series uncoiling feeding laser cutting machine is special for metal coiling cutting
- Loading, uncoiling, leveling, feeding, cutting and unloading can be automated in one system
- Real-time in-line cutting, simultaneous cutting and feeding, continuous production and processing.
Uncoiling And Skin Pass Process
- The 15T Structure of Skin Pass Mill Six-Roll-fiber laser cutting machine, equipment for the full CNC operation, easy to use and maintain.
- The process: 15T Uncoiling (with pressure arm, hydraulic loading cart, hydraulic corbel ) → snubber →feeding with Six-Roll mill line → laser cutting
Main Components
Uncoiling
The machine consists of uncoiling, loading trolley, pressure arm, hydraulic pallet, pneumatic disc brake, hydraulic system. The machine body is welded with 20mm steel sheet, and it’s annealed to ensure the smooth operation.
- Max load capacity: 15T
- Max uncoiling width: 1500mm
- Inner diameter of steel coil: φ460mm-520mm
- Main shaft diameter: φ232mm
- Main motor power: 7.5KW with cycloid reducer (variable frequency adjustable with disc brake)
- Power of hydraulic motor:4KW
- With hydraulic loading trolley
- With hydraulic arm & hydraulic corbel
Skin Pass Mill Six-Roll
The machine frame is made of welded steel sheet, annealed. While the leveling part adopts a leveling structure of 10 above and 11 below; the whole machine is controlled by servo motors; the leveling part is controlled by servo motors with anti-scratch function; the whole machine is digitally operated, simple and easy to use. It is applicable to the stainless steel, galvanized sheet, carbon steel, aluminium sheet , cold-rolled sheet, etc.
- Max leveling width: 1500mm
- Max leveling thickness: 0.5-2.0mm
- Max feeding speed: 20 m/min
- Leveling and feeding accuracy error: ±0.5mm /3000mm
- Main motor power: 4.4kw
- Leveling accuracy: 0.1mm/m2
- Total axes: 25 axes (40Cr material)
- Leveling axes: 10 above 11 below (six-roll)
- Diameter Leveling Roll:Ф65*1500treatment of High Frequency Fine Grinding Surface with Hard Chrome
- Lifting mode:CNC lifting control mode
- Main drive mode: heavy gearbox transmission, with universal shaft connection
- Back-up roll : 4 support roll above & below respectively, Independent adjustable with motor
Electrical control system
- The system adopts a programmable controller XINJIE as the core control device to implement automatic control of the entire process.
- Applicating the high-resolution touch screen, the system interface is easy to operate and can be equipped with multiple production specifications according to customer requirements, which can be called up directly during the production process, and each specification has an independent output calculation function, which is convenient for the operator to produce according to the order.
- The electrical design is in accordance with national safety standards and is equipped with, such as: emergency stop devices, limit protection, leakage and overload protection, interlocking safety devices, etc. to ensure that the whole process is safe and working smoothly.
Name | Model / Specification |
Controlled System | SHENGTAI |
Srevo Motor | INOVANCE |
PLC controller | XINJIE |
Touch Screen | XINJIE |
Contactor | Schneider |
Button | Schneider |
Stepper Motors | SHENLI |
Safety Relay | Schneider |
Pneumatic components | Zoncn |
Main Structure Of The Cutter
The lathe bed adopts honeycomb structure
- The bed adopts Hymson’s multi-keel structure with patent tenon & mortise welding, following the precision CNC machine tool’s design standards, through data simulation analysis and durability test, to ensure stable structure of the machine tool and long-term stable operation of the equipment;
- The lathe bed processing has undergone high temperature processing to eliminate the material’s internal stress and that produced during welding, to ensure high strength, high precision, and high tolerance.
- The middle intelligent partition is used for air extraction and dust removal, and the corresponding air outlet is automatically opened with the cutting range to reduce dust diffusion during the cutting process.


Servo Motor
- Branded servo motor and drive, with high encoder resolution;
- Integrating high dynamics, compact structure and energy efficiency.
Floating Cross Beam
- Adopting the floating cross beam structure design to offset the impact caused by the degree of reference parallelism on both sides of the machine body in long-term use, thus guarantees cutting precision;
- The floating cross beam can effectively protect the sliding block to reduce force suppression and bead blasting under force, thus guarantees the linear precision of operation and reduces the out-of-straight and out-of-round situations in cutting.


CNC Numerical Control System

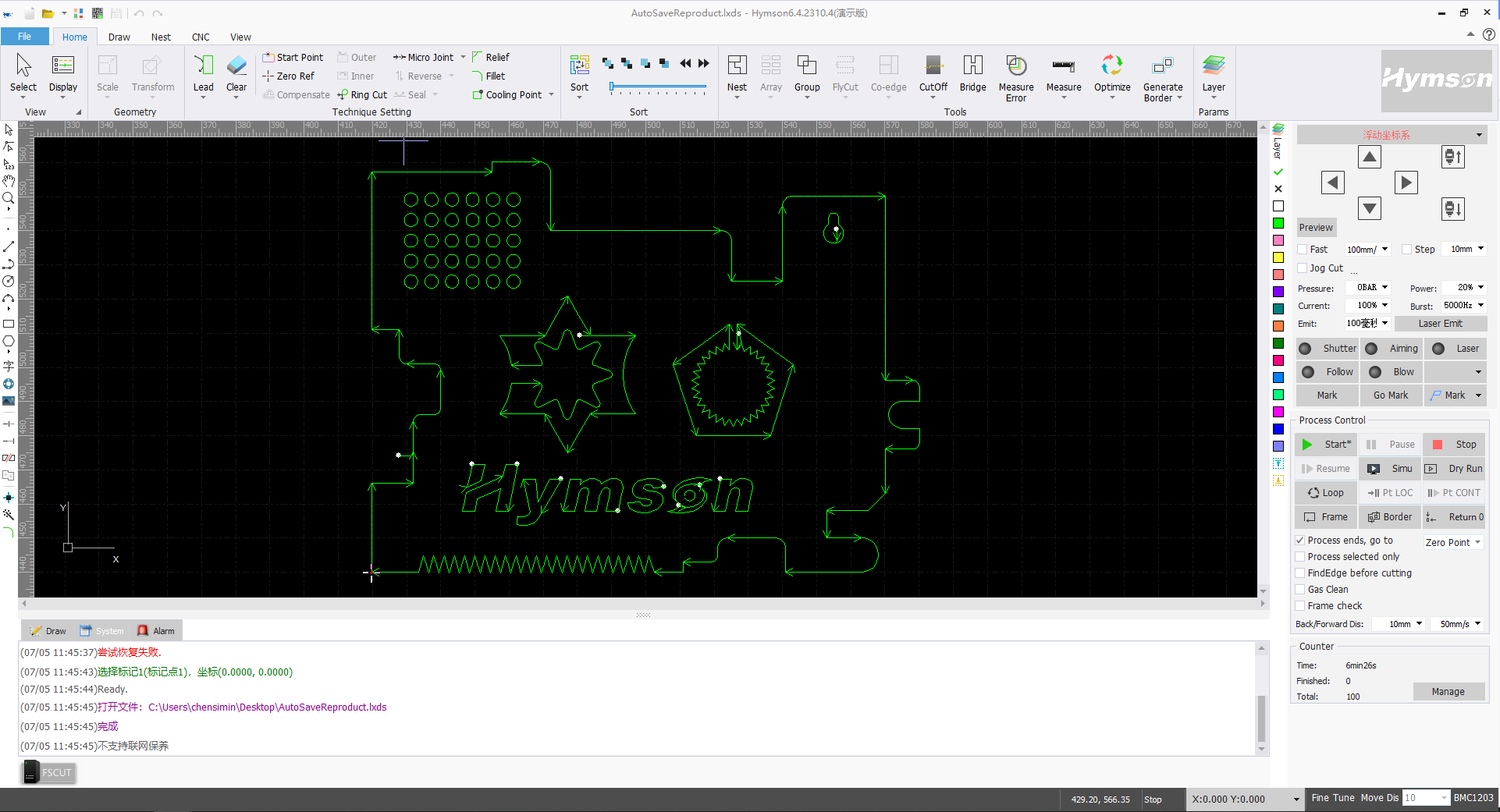

CypCut Control System
- The equipment applies FSCUT laser cutting control system, with simple and elegant interfaces, strong and practical functions and a large-screen display. It is a professional laser cutting system developed based on the Windows operating system and integrating many laser cutting modules with dedicated functions. Equipped with a wireless keyboard and a wireless mouse, the equipment is easy to operate.
Simple and Practical Cutting Software
- We provide Cypcut,Tubest cutting software with complete functions. With rich functions, the software highly simplifies and optimizes the cutting process to significantly improve the operator’s work efficiency and production efficiency.
Graphic Operation Function
- CypCut provides common drawing functions, which can be easily used from the drawing toolbar on the left side. The use of these drawing functions is mostly similar with AutoCAD and is very intuitionistic. The software has a number of humanized graphic operation functions and has a common graphics library.
Automatic Switching between Marking and Cutting Modes
- The marking and cutting modes are separately set by the operator before the commencement of cutting. The operator may reconfigure the machine and input new settings without stopping the material handling process. The switching between modes is automatic, which improves the productivity of compound cutting.
- The operator conducts setup before starting the processing without stopping the material handling.
Real-time Frequency and Power Curves
- In order to obtain high quality acute angles and right angles, the software is equipped with real-time frequency and power curves and regulates the power of laser radiation automatically according to the movement speed of the cutting head. When the movement speed of the cutting head is zero (when it stops at a corner), the power of output radiation equals to the minimum power set in Setup to prevent burning the corner.
Supporting Multiple Files
- Cypcut software supports such graphic and data formats as .G, DXF, DWG, PLT, ENG, etc. and accepts international standard G codes generated by Master Cam, Type3, etc. The opening/import of external files, such as DXF, etc. are optimized automatically, which saves times and is efficient.
Standard material library
- Cypcut software reads the special material library, selects the corresponding material library parameters according to different materials, and is convenient to modify and store.
Rich Process Layer Interfaces
- CypCut provides 14 layers, each of which can be independently set, including such process parameters as cutting speed, laser frequency, air pressure, cutting height, etc. The color of each layer is unique for easy browsing and configuration of parameters such as cutting graphics.
Simple software and free upgrade
- The simplicity of Cypcut software can shorten the time required for intermediate experts to learn the basic tasks of the machine. The work cost of intermediate experts will be much lower than that of highly intelligent experts, which will have a positive impact on production costs.
Cutting Process Technology
Automatic Obstacle Avoidance
- When a workpiece cocks, the cutting head can identify it automatically and rise rapidly to avoid the obstacle and locate the position of the next workpiece intelligently
- ① To reduce the probability of collision between the cutting head and the workpiece; ② to guarantee the consistency of cutting during processing, thus improves the efficiency of processing; ③ to locate the position of the next workpiece intelligently, thus reduces the probability of integral transfer of a sheet and reduces the waste of sheets; ④ to reduce the workload of the operator and editor through the simple and intelligent operation.
Lightning Cutting
- Hymson’s characteristic new technology, which improves the laser cutting production in three aspects, i.e. cutting precision, cutting speed and energy consumption in cutting
- High Efficiency: Lightning cutting has more efficient capability of perforation and faster cutting speed.
- Low Energy Consumption: The energy consumption of gas for cutting purposes is reduced by over 50%
- Good Quality: Higher quality of cutting section, smooth and even cut edge, fewer burrs.
Breakpoint Resume
- In case of program interruption, sudden power failure, etc. during cutting, when you restart the machine, the “Breakpoint Resume” function can memorize the path previously set and resume the processing.
- Avoid going through the process again from the original start point which is time-consuming and affects the efficiency
- When cutting a thick sheet or a workpiece with a broad outline, the “Breakpoint Resume” function can well solve a series of problems, such as time-consuming, consumption of a lot of materials, high cost, etc.
Arbitrary Point Cut-in
- During the real production, when a part of the sheet is not cut thoroughly due to dust on a certain node on the sheet, insufficient gas, etc., the solution for general laser cutting machine manufacturers is resetting the system interface, that is, going through the process again from the start to the end of the procedure operation which is time-consuming, consuming a lot of materials, and high-cost.
- With Hymson’s “Arbitrary Point Cut-in” function, the cutting head can cut in at arbitrary point, without cutting from the start to the end, thus solves the problems of time-consuming, consumption of a lot of materials, high cost, etc.

Gradual Speed Regulation in Tool Start
- A thick sheet is not cut thoroughly; lines on the section are uneven; the section has serious dross, etc. If the tool start is poor, high quality cutting effect of thick sheets cannot be obtained and a series of problems that impact the workpiece quality, such as reflection of blue light, fault, etc., may appear. In serious cases, the cutting head and optical devices may be damaged.
- With Hymson’s “Gradual Speed Regulation in Tool Start” (for thick sheets) process, after perforation, the speed regulation is gradual intelligently, thus achieves better cutting effect. This process is mainly
- used in cutting of thick stainless steel and aluminum alloy sheets, and is stable and provides high quality workpieces.
Fly-cutting
- The “Fly-cutting” process can put the start point of cutting of the outline on the tangent line of the motion trail of the laser head, without adopting leads. It does not independently cut every detail, instead, it cut all outlines into a straight line.
- It reduces the changes in the cutting direction of the laser during cutting, reduces the duration and the number of times of perforation, and ensures that the laser head is always in the high-velocity motion status during cutting, so it is very suitable for high speed cutting processing of thin steel sheets.
- It reduces the processing time of sheets and improves the cutting efficiency of the lathe.
High Speed Cutting
- General rapid acceleration and deceleration, such as violent impact vibration, toothed rack break-off, etc., may damage the hardware of the lathe.
- Hymson’s “High Speed Cutting” function plans the cutting path in advance and optimizes the turning and the addition and subtraction process as well as the interpolation.
- Efficient: Significantly improving the acceleration and deceleration and reducing the time of acceleration and deceleration; increasing the efficiency of complicated workpiece processing by 30%
- Safe: Absorbing the shocks from acceleration and deceleration in cutting on the lathe to guarantee high speed processing of the machine and to protect the lathe against shocks.
Performance Indexes
Structure of Skin Pass | Mill Six-Roll |
Max Thickness of Roll Material | 1500mm |
Max Weight of Roll Material | ≤15T |
Max Processing Length | Unlimited |
Max Processing Thickness | 0.5-2.0mm |
Feeding Precision | ±0.5mm /3000mm |
Leveling Precision | ±0.1mm/m2 |
Max Processing Speed | 20m/min |
Application | Stainless Steel, Galvanized Sheet, Carbon Steel, Aluminium Sheet , Cold-rolled Sheet |
Power | AC Three-phase 380V/50HZ |
Working pressure | 0.6-0.8Mpa |
User’s Machine Installation Site Condition Preparation
S/N |
Content |
1 |
Power Supply Capacity: ≥60KVA |
2 |
Power Supply Requirements: (1) Three-phase voltage stability<±5%; (2) Unbalancedness of three-phase power supply < 2.5% (Note: Abrupt changes in supply voltage and sudden power failure are not allowed, otherwise, the laser may be damaged easily. Good grounding is required (ground resistance < 3 Ohm). |
3 |
Compressed Air Supply Requirements:
|
4 |
Auxiliary gas for cutting: Oxygen (O2)/ Nitrogen (N2): Purity ≥ 99.99% |
5 |
Sheet (Tube) Cutting: Black skin, smooth, level, rustless, evenly rolled, reaching the ISO standard. |
6 |
Installation Site Requirements: 1. The foundation for equipment installation does not settle and should be constructed according to the foundation drawing provided by Party B; 2. Temperature Requirement: [5-30]℃; 3. Humidity Requirement: < 70%; 4. After the equipment is installed and commissioned, separate the laser and install an air conditioner. |
7 |
The equipment operator should have been graduated from a secondary specialized school or above and have the experience in operation of computers and general numerically-controlled lathes. The equipment should be equipped with a programming computer. |
Installation and Commissioning
1. All the equipment provided under the contract should be installed and commissioned by Hymson. After the contract is signed, we will determine the specific installation location of the equipment in the shortest time and provide the equipment foundation drawing within 5 working days after the contract goes into effect. Prior to the installation and commissioning, you should prepare the equipment foundation strictly according to the requirements specified in the equipment foundation drawing provided by Hymson. After the installation site is ensured, the engineers will install and commission the equipment with the tools they carry and, within 10 days, complete the installation, commissioning, technical index tests, training, acceptance and delivery for use;
2. The expenses related to the installation and commissioning and the staff assigned should be borne by Hymson.
Transportation and Logistics
1. The place of delivery should be your installation site.
2. Standard packaging suitable for long-distance transportation by truck, being dampproof, rust-proof and shockproof; suitable for integral hoisting and indicating the centre of gravity for lifting and the hoisting position;
3. Mode of Transport: Motor transport. We should bear the freight and insurance.
4. Each packaging box should be accompanied by a detailed packing list and a quality certification as well as the instructions on the equipment and other documents and materials. The packing list should be outside the packaging box and the quality certification should be inside the packaging box.
Pre-sale Service
1. Welcome to send sample material to us for testing laser marking engraving for you.
2. We offer pictures, videos and other relevant documents for you to know more about the machine.
3. We are online and would respond fast to answer all your questions.
4. If you have chance visiting China, you are warmly welcome to visit our factory.
After-sale Service
1. Any parts have a quality problem during the warranty period, We will send you a new replacement for free. And Customer affords the replacement shipping cost.
2. The training video, detailed manual, and catalog sent with the machine. The customer could study the operation of the machine by watching the clear training video.
3. If there is a technical problem or new inquiry, Hymson has a fast response to service support by online or email even if need by the phone call.
4. Professional technical support and after sales following up. A free software update.
FAQ
1) What are the primary products of your company?
Our primary products include sheet metal laser cutting machine, fiber laser 1500w cutting machine, tube laser cutting machine, precision laser cutting machine, laser welding machine, 1.5 kw fiber laser cutting machine at a great metal sheet cutter price.
2) Where is your fiber laser equipment applied to?
Our 1.5 kw fiber laser cutting machine is suitable for all kind of stainless steel, carbon steel, aluminium, copper, galvanized steel, electrolytic steel and silicon steel etc.
3) What are the advantages of your laser equipment?
By using Hymson laser, you can monitor end-to-end process and take complete control of all the machining process. The whole machining process of the fiber laser 1500w cutting machine will be done smoothly, which will greatly improve production efficiency. In addition, the precision and consistency of the products in mass production is guaranteed.
4) How to do control the quality when you produce laser equipment?
We introduce international advanced production technology, and strictly implement a series of measures of quality and cost control to ensure the quality of laser cutting machine. In addition, all raw materials are strictly inspected in accordance with international standards before they are put into production.
5) Which countries are your laser machinery sold to?
Our fiber laser 1500w cutting machine sell all over the world, such as United States, Spain,Netherlands,Poland,France,Turkey, Switzerland,Iran,Egypt, India, South Africa, Malaysia, Canada,Mexico,Colombia,Brazil,Chile,Korea, Japan and many other countries.
