S6024 PRO SERIES METAL TUBE LASER CUTTING MACHINE
Hymson’s brand new S·6024 pro series laser tube cutting machine is a new and all-round upgraded model, with a breakthrough in machining efficiency. It is your ideal production tool for high efficiency laser processing and tube cutting.
Metal Tube Laser Cutting Machine | CNC Laser Pipe Cutting Machine - Hymson
 pro.png)
Hymson's brand new S6024 PRO series metal tube laser cutting machine is a new and all-round upgraded model, with a breakthrough in machining efficiency. It is your ideal production tool for high efficiency laser processing and tube cutting.
The new side-hung tool body, automatic feeding mechanism, all-round breakthrough of processing efficiency.
The pneumatic, fully sealed, integral type chuck is more stable and realizes high machining precision and prominent effect of dust prevention.
Chuck stroke up to 240mm, processing range: round pipe 10-240mm; Square tube 10-240mm.
The brand new FSCUT 5000B professional tube cutting system integrates multiple tube cutting functions.
Optional full-automatic/semi-automatic loading system for reducing labor cost.
Short tail material for maximizing tube utilization rate.
Machine Structure
Standard machine tool body, annealing treatment after welding, the overlong gantry processing center can achieve one-time processing, with high accuracy.
The flatness and straightness of the guide rail are ≤0.05mm/m, the maximum surface roughness can be up to 1.6.
The maximum clamping force is 270kg, which is industry-leading.

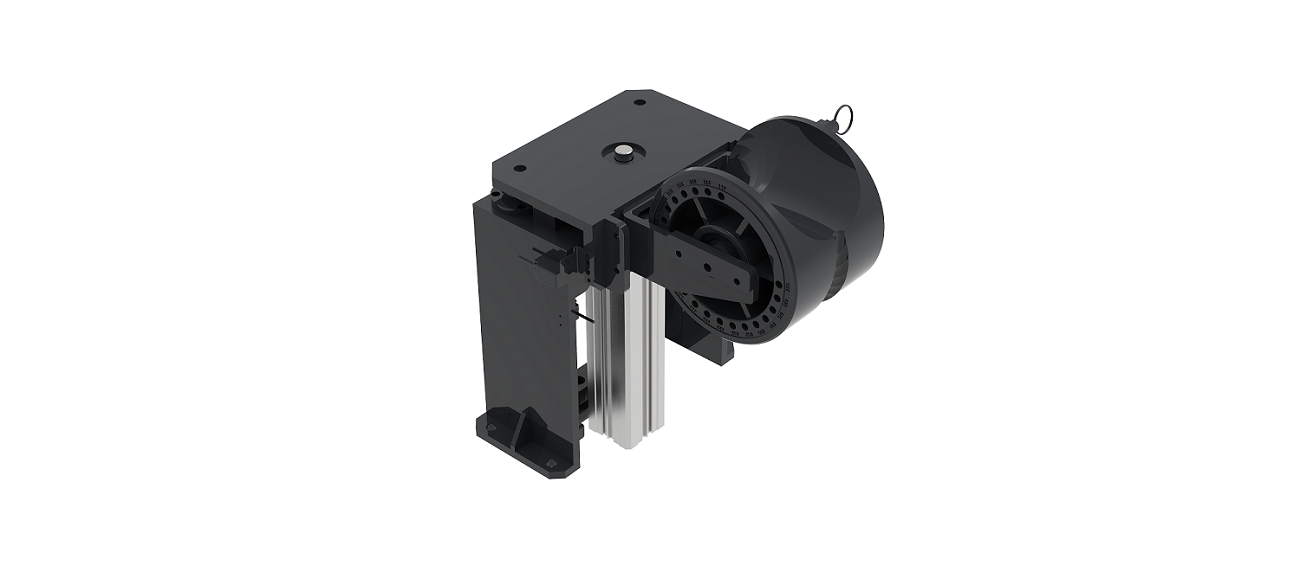

The front and rear chucks adopt full-seal dust proof structure, and which can efficiently isolate dust and avoid stuck.
Front chuck offside cutting can achieve 60mm cutting residue,maximize tube utilization.
The standard dual-roller clamping jaw, and high cutting accuracy.
The reducing wheel support has better wrapping performance, which can efficiently avoid shaking of the fine pipe, and the cutting accuracy is higher.
The automatic feeding unit can support feeding length of the pipe: 6m
Pipe specification: Round pipe of Φ20mm~Φ200mm, square pipe and rectangular pipe of □20mm~□200mm
Pipe type: Round pipe, square pipe and rectangular pipe
The automatic feeding unit adopts new design, the structure is sample, stable feeding, and high performance cost ratio.
The movable servo feeding device can better support the cutting of the slender pipe and solve the cutting accuracy problem caused by the shaking of the slender pipe.
Automatic turning plate cutting, can ensure the continuous production of cutting.
The front chuck has advanced collision avoidance cutting function to achieve the shortest tail material of 100mm.
CNC Numerical Control System
FSCUT5000B control system
FSCUT5000B laser cutting control system, developed on the basis of Windows 10 operating system, communicates through Erthercat bus and integrates laser cutting modules with special functions. The simple and concise interface, power and practical functions, touch display screen and wireless keyboard and mouse make it easy to operate.
| Equipment Model | S-6024 Pro |
| Processing range | Φ10mm ~ Φ240mm £10mm~£240mm |
| Material type | Carbon steel or stainless steel round pipe, square pipe, rectangular pipe, oval pipe |
| Maximum feeding length of tube | 6200mm |
| Maximum cutting length of tube | 3000 mm |
| Maximum Weight of a Single Tube | 270Kg （45Kg/m） |
| Tailing | 60mm |
| Work Travel (machine tool) | Y axle: 0～6200mm |
| X axle: 0～250mm | |
| Z axle: 0～180mm | |
| XY Positioning Accuracy | ±0.03mm/m |
| XY Repeat Positioning Accuracy | ±0.03mm |
| Rotation Speed of the Chuck | 100rpm |
| Bevel Cutting Angle | ±45° |
| Machine Tool Dimensions | 12m x3m x 2.8m |
