Fiber Laser Tube Cutting Machine

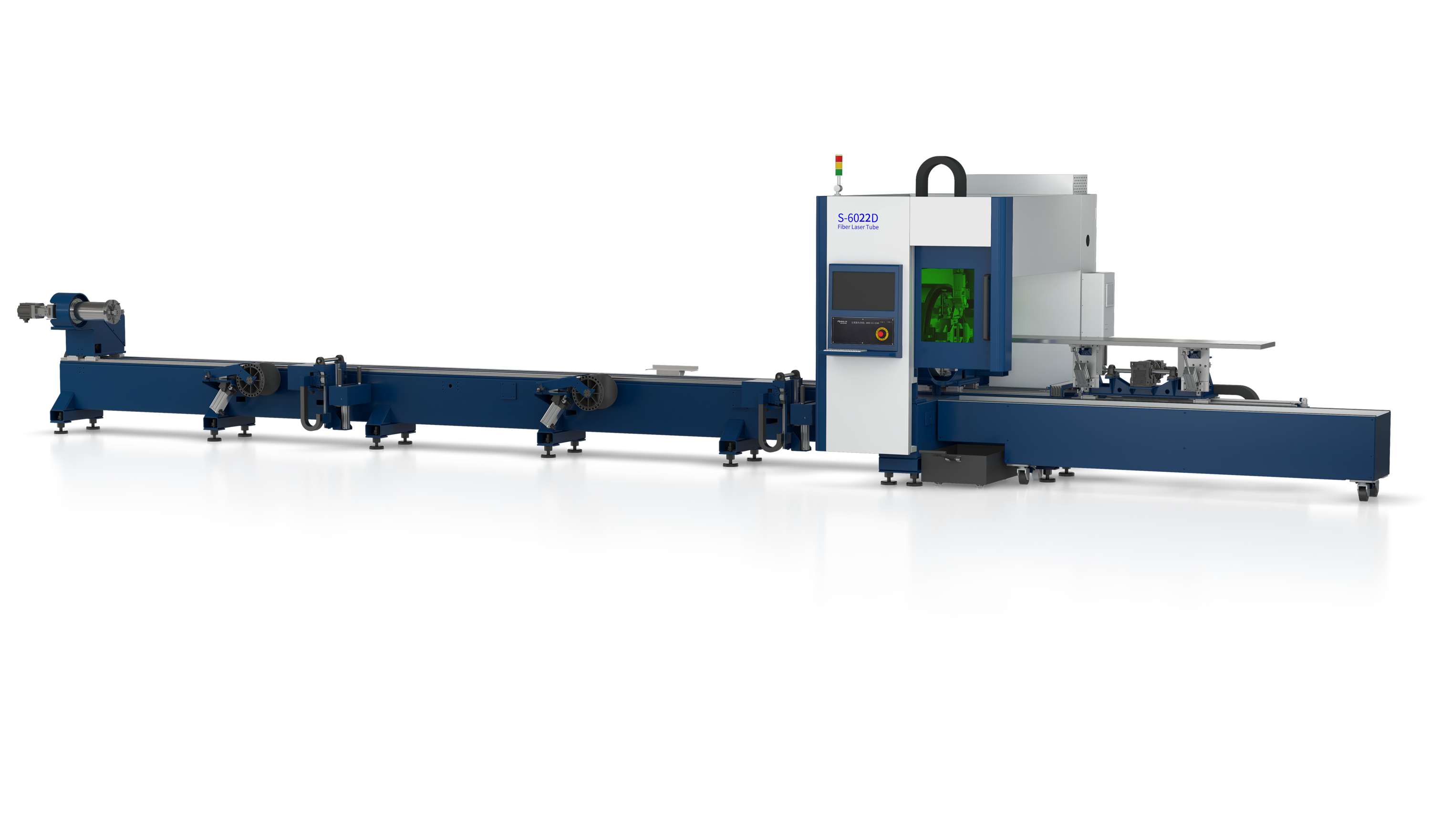

  Hymson’s brand new S·6022 series laser tube cutting machine is a new and all-round upgraded model, with a breakthrough in machining efficiency. It is your ideal production tool for high efficiency laser processing and tube cutting.
  • The new side-hung tool body, automatic feeding mechanism, all-round breakthrough of processing efficiency;
  • High speed, high efficiency and high precision for small and medium-sized pipe cutting,
  • The pneumatic, fully sealed, integral type chuck is more stable and realizes high machining precision and prominent effect of dust prevention,
  • chuck stroke up to 220mm, processing range: round pipe 10-220mm; Square tube 10-150mm;
  • The brand new FSCUT3000professional tube cutting system integrates multiple tube cutting functions,
  • Optional full-automatic/semi-automatic loading system for reducing labor cost,
  • Optional short tail material for maximizing tube utilization rate.

Performance Indexes

Equipment Model S-6022 Pipe Laser Cutting Machine
Processing range Round pipe:Φ10mm ~ Φ220mm
Square tube:10mm~150mm
Material type Carbon steel or stainless steel round pipe, square pipe, rectangular pipe, oval pipe
Maximum feeding length of tube 6200mm
Maximum cutting length of tube 3000 mm
Maximum Weight of a Single Tube 300kg 50Kg/m)
Tailing 210mm/10mm
Work Travel (machine tool) Y axle: 0~6200mm
X axle: 0~250mm
Z axle: 0~180mm
XY Positioning Accuracy ±0.03mm/m
XY Repeat Positioning Accuracy ±0.03mm
Rotation Speed of the Chuck 100rpm/min
Machine Tool Dimensions 12m x 3m x 2.8m

Machine Structure

Pipe Laser Cutting Machine Structure
  • Standard machine tool body, annealing treatment after welding, the overlong gantry processing center can achieve one-time processing, with high accuracy.
  • The flatness and straightness of the guide rail are ≤0.05mm/m, the maximum surface roughness can be up to 1.6.
custom metal laser cutting
  • The reducing wheel support has better wrapping performance, which can efficiently avoid shaking of the fine pipe, and the cutting accuracy is higher.

CNC Fiber Laser Cutter
  • The maximum clamping force is 300kg, which is industry-leading.
  • The front and rear chucks adopt full-seal dust proof structure, and which can efficiently isolate dust and avoid stuck.
  • The slant horizontal integral structure is convenient for feeding, and the feeding time is greatly reduced.
  • The standard dual-roller clamping jaw, and high cutting accuracy.
aluminum cutting machine
  • The automatic feeding unit can support feeding length of the pipe: 6m; pipe specification: Round pipe of Φ10mm~Φ150mm, square pipe and rectangular pipe of  10mm~□150mm;pipe type: Round pipe, square pipe and rectangular pipe.
  • The automatic feeding unit adopts new design, the structure is sample, stable feeding, and high performance cost ratio.

CNC Numerical Control System

FSCUT3000 control system

FSCUT3000 laser cutting control system, developed on the basis of Windows 10 operating system, communicates through Erthercat bus and integrates laser cutting modules with special functions. The simple and concise interface, power and practical functions, touch display screen and wireless keyboard and mouse make it easy to operate.

cnc laser steel cutting machine
